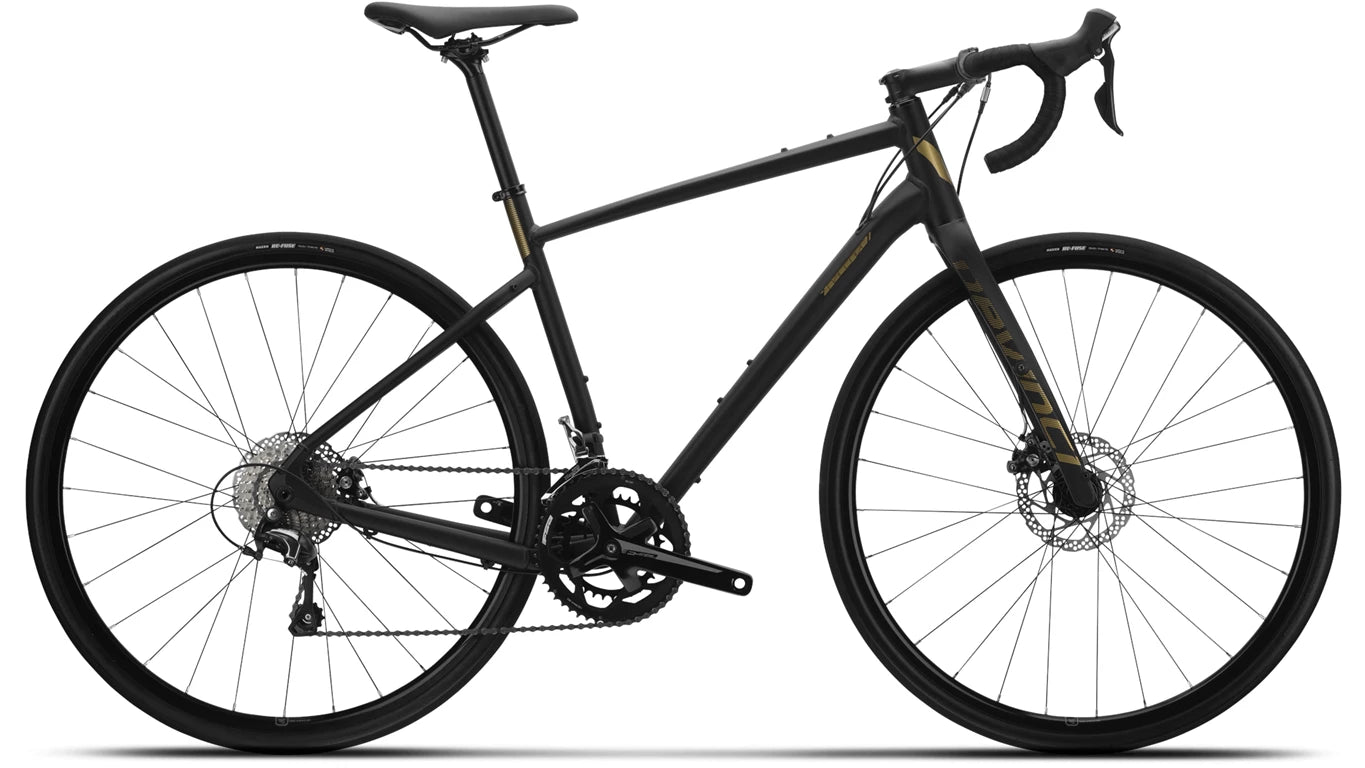

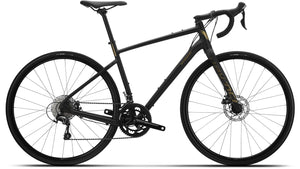

Devinci Hatchet Tiagra 20S
ALL-TERRAIN ASSASSIN
Wherever you roll, Hatchet is willing, able — and highly capable. This versatile, fun-igniting platform merges off-road DNA with a moonshot mindset that shreds Strava gravel, brings the party to Grinduro and even plays nice on pure pavement. Hatchet has 700c x 45mm / 650b x 2.1’’ tire clearance, and its MTB-inspired geometry includes a longer top-tube and shorter stem for enhanced handling on loose, technical terrain. When it’s time to slow your roll, 160mm flat-mount brakes stop on a dime. Additional details include three bottle mounts (two in the frames, one under the down tube), a top-tube mount for added storage on longer rides/races, discrete rack/fender mounts and a capped-thru axle fork for an ultra-clean look and a lifetime warranty that won’t let you down.
TECHNICAL
SPECIFICATIONS
HATCHET TIAGRA 20S
Manufacturing
Designed in Canada
Frame
- FRAMEAluminum Optimum R03
- FORKDevinci Full Carbon
- HEADSETFSA Orbit C40 Integrated
- SEAT CLAMPAlloy 31.8mm
Cockpit
- HANDLEBARV2 Pro 31.8mm R:70mm | D:120mm
- STEMV2 Pro 31.8 | 6°
- SADDLEDevinci
- SEATPOSTDevinci 27.2mm
- HANDLEBAR TAPESuper Soft
Brakes
- REAR BRAKE CALIPERShimano RS305 Mechanical
- FRONT BRAKE CALIPERShimano RS305 Mechanical
- FRONT SHIFTER / BRAKEShimano Tiagra ST-4700
- REAR SHIFTER / BRAKEShimano Tiagra ST-4700
- ROTORSShimano SM-RT56 160mm
Drivetrain
- REAR DERAILLEURShimano Tiagra 4700
- FRONT DERAILLEURShimano Tiagra 4700
- CRANKSETFSA Vero Pro 50/34T
- CASSETTEShimano HG500 10s 11-34T
- CHAINKMC HG54
Wheels
- FRONT RIMV2 Comp db | 21mm inner
- FRONT HUBFormula Disc sealed bearing | QR 9x100
- REAR RIMV2 Comp db | 21mm inner
- REAR HUBFormula Disc sealed bearings | QR 10x135
- SPOKESStainless 14G
- TIRESMaxxis Refuse 60tpi foldable 700x32c
Weight
10.96 kg / 24.16 lb
*For a size medium complete bike, weight approximate and subject to change.
