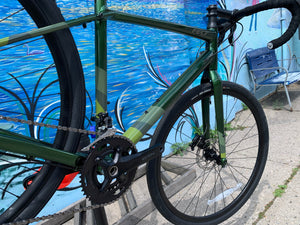

Felt Broam 40
Built with Shimano’s gravel-specific GRX components with a 2x drivetrain and gearing designed for tackling whatever topography you come across.
| VERSION | BROAM | 2 | SERIES | BROAM (A-1.0) |
| MODEL | BROAM | 40 | ||
| MARKET | Global | ||
| MODEL CODE | FB-20B-BRMA40-NB-FA | MODEL # M3 | BBIAA30 |
| FRAME | Felt Adventure | SuperLite aluminum | ||
| FRAME TECHNOLOGIES | Custom Butted tubing / Smooth welding | BOTTOM BRACKET TYPE | Threaded | BSA 68mm |
| BRAKE TYPE, REAR | Disc, Flat Mount | Ø140mm minimum | DERAILLEUR HANGER TYPE, FRONT | Band | Ø31.8mm |
| DERAILLEUR HANGER TYPE, REAR | Standard Mount | TA 12x142 road, replaceable, aluminum | HEAD-TUBE TYPE | Felt ControlTaper | 1.125-1.5" |
| PROTECTOR TYPE | Clear vinyl for chain slap protection | ROUTING TYPE | Internal | mechanical specific |
| SEAT POST / CLAMP TYPE | Standard | 27.2mm post, 31.8mm clamp / 6061 aluminum, steel bolt & nut-bar | WHEEL TYPE | Specification: 700c / Compatible: 650b |
| TIRE MAX (CLEARANCE) | 700c: 45mm (6mm) / 650b: 2.1" (6mm) | FORK | Felt Gravel - Adventure | UHC Performance carbon fiber with aluminum steerer tube |
| HEADSET | IS (NO.42) | AXLE, FRONT | TA 12x100 |
| AXLE, REAR | TA 12x142 | BRAKE TYPE, FRONT | Disc, Flat Mount | Ø140mm minimum |
| FORK OFFSET | 50mm | HEADSET SPECIFICATION | Top Cap: Devox Variable Angle stem / Top Cover: Felt VariableHeight (20mm PC, 4.5mm aluminum) / Bearings: FSA integrated retainer / Spacers: FSA nylon (10mm, 2x5mm) / Compression Device: star nut for aluminum steerer tube / Crown Race: FSA alloy |
| AXLE, FRONT SPECIFICATION | Devox AxleTA 130.5 | 125mm + 5.5mm head, M12 x 1.5P x 17mm, Switch lever compatible | AXLE, REAR SPECIFICATION | Devox AxleTA 172-9 | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, Switch lever compatible |
| SPEED | 2x10-speed | SHIFTERS | Shimano Tiagra 4700 |
| DERAILLEUR, FRONT | Shimano GRX RX400, braze-on with Ø31.8mm clamp band adapter | DERAILLEUR, REAR | Shimano GRX RX400 |
| CRANK | Shimano GRX RX600-10, 46/30T | BOTTOM BRACKET | Shimano RS500 |
| CASSETTE | Shimano HG500, 11-34T | CHAIN | Shimano HG54 |
| CRANK LENGTH | 47cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm | BRAKE CALIPERS | TRP HY/RD, cable actuated hydraulic disc, flat mount |
| BRAKE ROTORS | TRP TR-35, Center Lock, 160/140mm | WHEELS | Devox WheelRDS.A1 with Shimano hubs | 23/21 |
| TIRES | Maxxis Refuse with Silkworm, 700x40c | TIRE COMPATIBILITY | Tubeless Compatible |
| RIMS | Aluminum | RIM DEPTH | 23mm |
| RIM WIDTH, INSIDE | 21mm | HUB, FRONT | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x100 |
| HUB, REAR | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x142, 11-speed | SPOKES | J-Bend, 2.0, stainless steel, black |
| NIPPLES | Brass, black | HANDLEBAR | Devox DBar.A2 GXA |
| STEM | Devox StemR.A2 VA | GRIPS / TAPE | Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs |
| HANDLEBAR CLAMP DIAMETER | 31.8mm | HANDLEBAR DROP | 130mm, 8° flare |
| HANDLEBAR REACH | 86mm | HANDLEBAR WIDTH | 47cm: 40cm / 51cm: 42cm / 54cm: 44cm / 56, 58, 61cm: 46cm |
| STEM CLAMP DIAMETER | 31.8mm | STEM ANGLE | ±8°/±16° |
| STEM LENGTH | 47cm : 80mm / 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm | SEATPOST | Devox Post.A3 |
| SEATPOST OFFSET | 0mm | SEATPOST LENGTH | 47, 51cm: 300mm / 54, 56, 58, 61cm: 330mm |
| SADDLE | Selle Royal Essenza Gel | WEIGHT | 23.56 lb, 10.71 kg |
| WEIGHT DISCLAIMER | The most accurate way to determine a product's weight is to have your local dealer weigh it for you. Because we understand that weight is an important metric, we strive to list it when possible. When listed, weight is based on a single sample in a specific size and with all items as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, and accessories). Felt continues to be an industry leader in weight and performance. | SPECIFICATION DISCLAIMER | Specifications subject to change without notice. |
