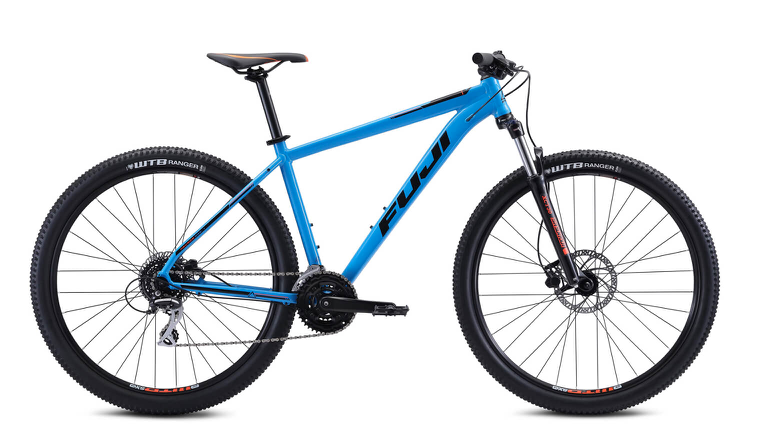

The perfect recreational mountain bike for new riders to dip their toes into trail riding, a commuting solution, or just an all around fun bike for the city or country. An all-new frame with updated geometry for 2021, the Nevada ensures comfort and reliability, while rear fender and carrier mounts plus a kickstand make this a true do-it-all machine.

• A2 aluminum frame featuring updated geometry to meet today's standards
• SR Suntour suspension fork with 100mm of travel
• Shimano Altus Rapid Fire 3x8 speed drivetrain

• Tektro HD-M275 brakes with 180/160mm rotors
• WTB SX19 wheelset with WTB Ranger Comp 29"x2.25" tires

Specifications

---

Sizes

S, M, L, XL, XXL

Color(s)

Satin Gray, Cyan

Frame

Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle

Fork

SR Suntour SF19-XCT30-HLO-DS-29, hydraulic lockout, 100mm

Crankset

Prowheel, 42/34/24T

Bottom Bracket

Sealed cartridge bearing

Pedals

Resin platform

Front Derailleur

Shimano Tourney

Rear Derailleur

Shimano Acera

Shifters

Shimano Altus, Rapid Fire, 3 x 8-speed

Cassette

Shimano HG31, 11-34T

Chain

KMC HV700

Wheelset

WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes

Tires

WTB Ranger Comp, 29" x 2.25", 27tpi

Brakeset

Tektro HD-M275, 180/160mm rotors

Brake Levers

Tektro HD-M275

Headset

1 1/8" sealed bearings

Handlebar

Fuji flat bar, alloy, 710mm

Stem

Fuji, forged aluminum, +/-6°

Grips

Fuji Performance Grip

Saddle

Fuji Performance Saddle

Seat post

Fuji, alloy, 30.9mm

Geometry

---

View Size Guide

	Size	S	M	L	XL	XXL
	Bike Size	15"	17"	19"	21"	23"
A	Seat Tube, Center To Top	370	420	470	520	560
C	Top Tube, Effective	591	611	636	653	672
D	Head Tube Length	95	105	110	120	130
E	Seat Tube Angle	73°	73°	73°	73°	73°
G	Head Tube Angle	69°	69°	69°	69°	69°
H	Chainstay Length	450	450	450	450	450
I	Wheelbase	1113.5	1134	1160	1177.5	1197
J	Bottom Bracket Drop	55	55	55	55	55
K	Fork Offset	46	46	46	46	46
M	Stack	611.5	621	625.5	635	644
N	Reach	404	421	445	459	475
O	Standover	781	809	834.5	862	886
